Features

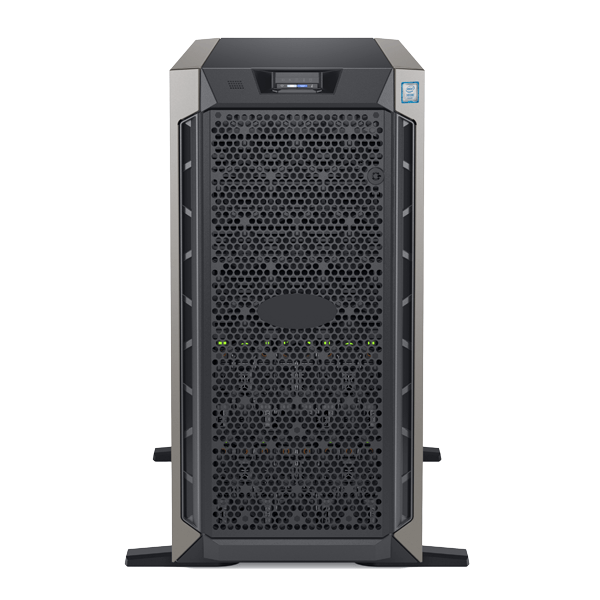

The PowerEdge T640 is a versatile, powerhouse server ideal for mid-sized offices, remote sites and data centers. The T640 combines powerful performance and massive internal storage capacity in a rack or tower platform.

• Deliver fast insights with up to 8 NVMe drives and 2 x 10GbE connections.
• Provide advanced imaging and VDI with up to 4 x 300W GPU accelerators.
• Improve productivity with agent-free Dell iDRAC9 for automated management.
• Protect server configuration and firmware from malicious changes with new Configuration Lock-down.

Specification

• Processor:
  Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
• Memory:
  24 DDR4 DIMM slots, Supports RDIMMS/ LRDIMMS, speeds up to 2993MT/s, 3TB max
  Up to 12 NVDIMM, 192GB max
  Supports registered ECC DDR4 DIMMs only
• Drive bays:
  Up to 8 or 18 x 3.5” SAS/SATA (HDD/SSD) max 216TB or up to 16 or 32 x 2.5” SAS/SATA (HDD/SSD) max 122TB or up to 16 x 2.5 SAS/SATA (HDD/SSD) + 8x NVMe SSD max 112TB
• I/O & Ports:
  2 x 10GbE LOM (1GbE/10GbE)
  8 x USB (1 x USB 2.0, 1 x USB 3.0, 6 x USB 2.0/3.0) dedicated IDRAC Direct Micro-USB
  Video card: VGA
  Up to 8 PCIe Gen3 slots
• Storage controllers :
  Internal controllers:
  PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140
  Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
  External PERC (RAID): H840
  External HBAs (non-RAID): 12 Gbps SAS HBA
