Features

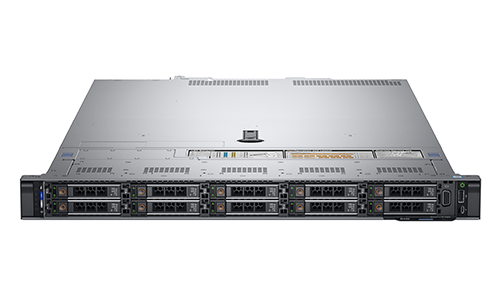

Experience an outstanding balance of performance and density for scale-out computing. The PowerEdge R440 brings you value in a small form factor. Benefit from platform flexibility and maximize performance with dual 2nd Generation Intel® Xeon® Scalable processors, up to 16 DIMMs and scalable storage that lets you mix SSDs and NVMe PCIe SSDs.

• Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors and tailor performance based on your unique workload requirements
• Help maximize uptime and reduce the IT effort to resolve issues by up to 72%* with ProSupport Plus and SupportAssist.
• Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
• Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.

Specification

• Processor: Up to two Intel® Xeon® Scalable processors, up to 22 cores per processor
• Memory: 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max*
• Drive bays: Front drive bays:
  Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max
  48TB or up to 4 x 3.5 SAS/SATA HDD max 56TB
  Optional DVD-ROM, DVD+RW
• I/O & Ports: Network options:
  2 x 1GE LOM + (optional) LOM Riser 2 x 1GE or 2x 10GE SFP+ or 2 x 10GE BaseT
• Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB
• Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
  Riser options also available include 2 x HH/HL or 1 x FH/HL
• Storage controllers :
  Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
  Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
  External PERC (RAID): H840
  External HBAs (non-RAID): 12 Gbps SAS HBA240GB (No RAID only)
